Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
-
Highlight
flexible membrane keyboard switch
,pet printing circuit board
,electronic membrane switch with warranty
-
Model NO.HC-FPC-008
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantHB
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsOrganic Resin
-
Size230.00mm * 176.00mm
-
Connector65pin (Zif)
-
LED Count12PCS
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Working LifeOver One Million Times
-
Minimum Order Quantity100
-
Price0.6
Keyboard Pet Flexible Printing Circuit Board Electrionic Membrane Switch
Keyboard PET Flexible Printing Circuit Board Electronic Membrane Switch
High-quality membrane switches manufactured with PET/PC raw materials and flexible printed circuit technology using silk screen printing methods.
Key Features
- Membrane switch with windows
- Touch feeling keys with embossing
- Silk screen printing for perfect exterior
- Over 1 million life cycle
- High quality construction
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm | Life Time | > 1 Million times |
| Current Rating | 25-100mA, 0-30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | ≤ 50V DC | Operation Humidity | at 40ºC, ≤ 98%RH |
| Insulation Resistance | ≤ 100M Ohm 250V DC | Dome Springback Time | < 5 msec |
| Switch Travel | Flat Type 0.05-0.3mm | Base Material Voltage Withstand | 1500V DC |
| Tactile Type | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
Materials
- Material: PET/PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million times
- Certifications: ISO9001:2008, RoHS, SGS
Applications
- Medical Equipment
- Telecommunications Apparatus
- Telephone Systems
- Household Appliances
- Security Systems
- Industrial Controls
Product Details
| Place of Origin | Dong Guan, China |
| Brand Name | Foundation |
| Model Number | HC-MS-002 |
| Certification | ISO9001:2008, SGS, Rohs |
Commercial Terms
- MOQ: 50pcs
- Payment Terms: T/T or L/C
- Mold Charge: 100% in Advance
- Sample Time: 9-10 days after drawing approval
- Lead Time for Production: 15-22 days after sample approval
Company Advantages
- Experienced management team with extensive field expertise
- Professional staff and skilled workers
- Strong R&D capability
- Quick delivery service
- Competitive pricing
- Two factories available for large orders
- Expert sales team and excellent customer service

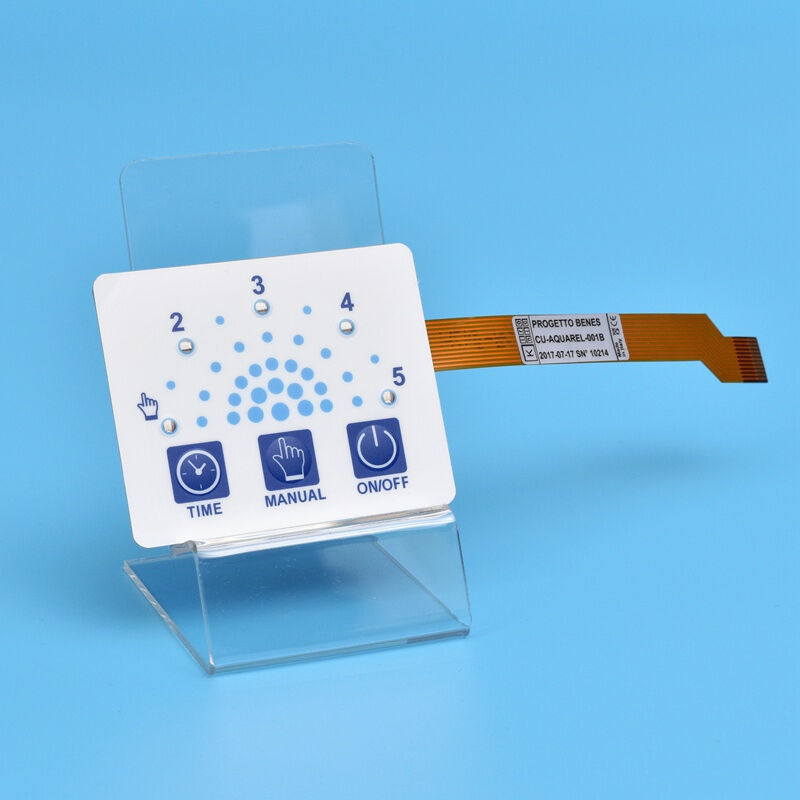

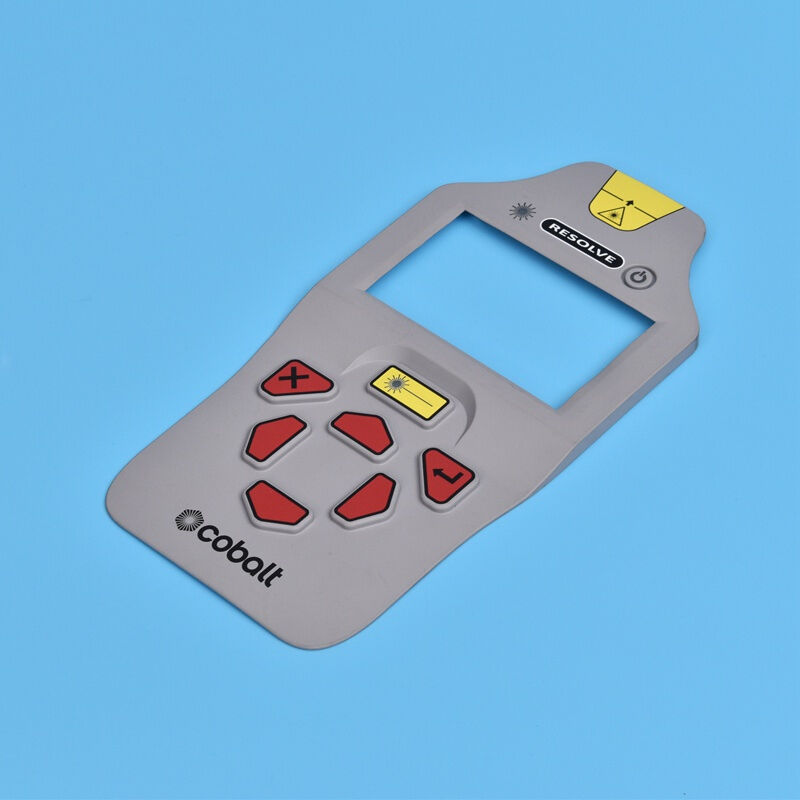

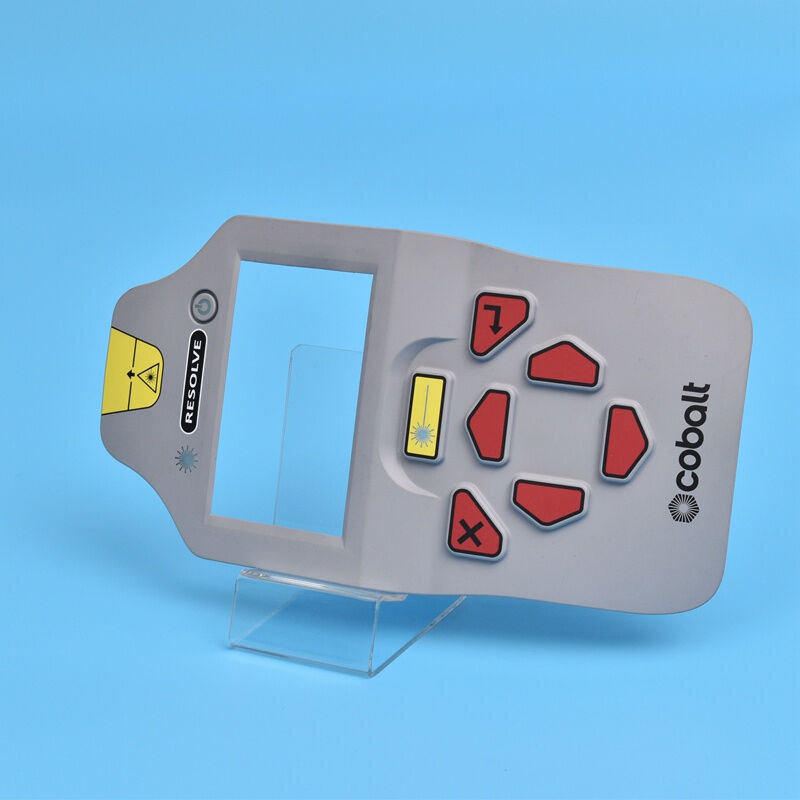

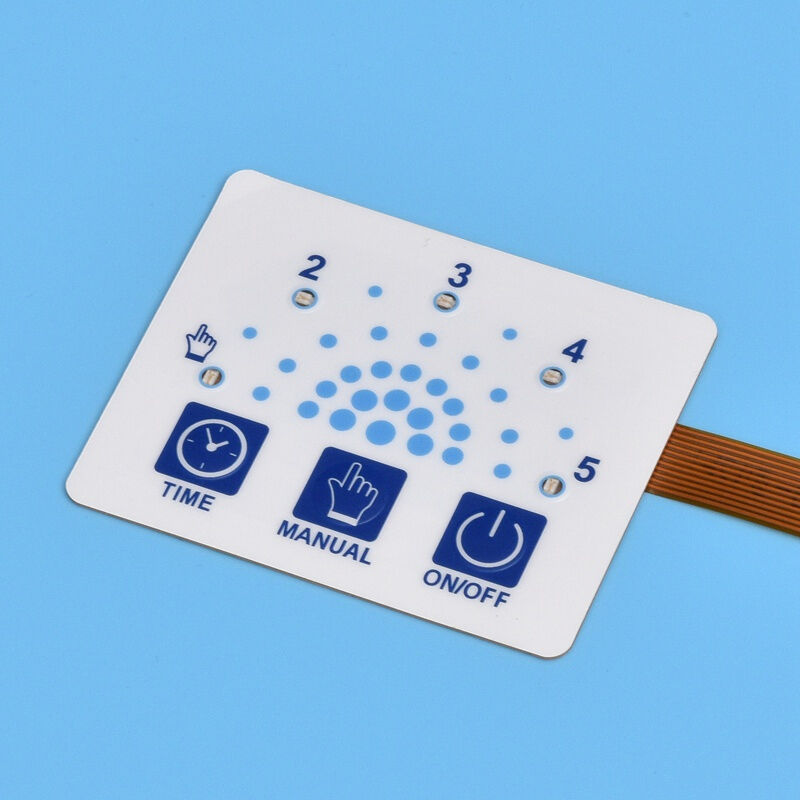

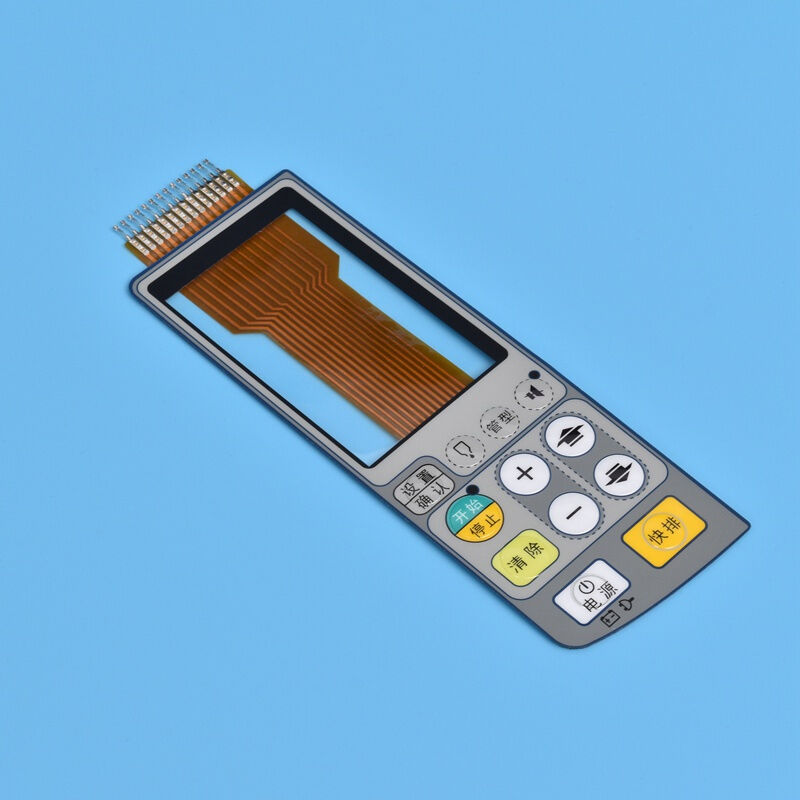

Product Images
Contact us for more detailed information and customized solutions. Let's discuss your specific requirements!
