Flexible PCB board smooth control
,Flexible printed circuit durable membrane
,Flexible membrane switch high-performance PCB
-
Model NO.HC-FPC-006
-
MaterialSynthetic Fiber
-
Flame RetardantV2
-
Mechanical RigidRigid
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsEpoxy Resin
-
Size289.00mm * 216.00mm
-
Key Count136 Keys
-
Connector Type65pin (Zif)
-
LED Count12PCS
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Minimum Order Quantity100

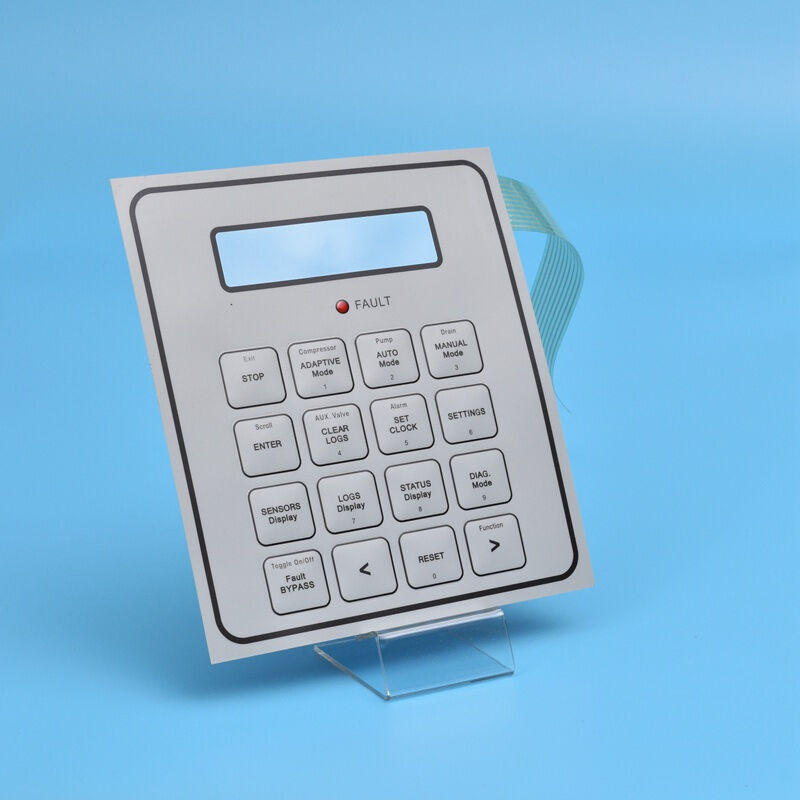

Control Feel Smooth Flexible PCB Board Flexible Printed Circuit

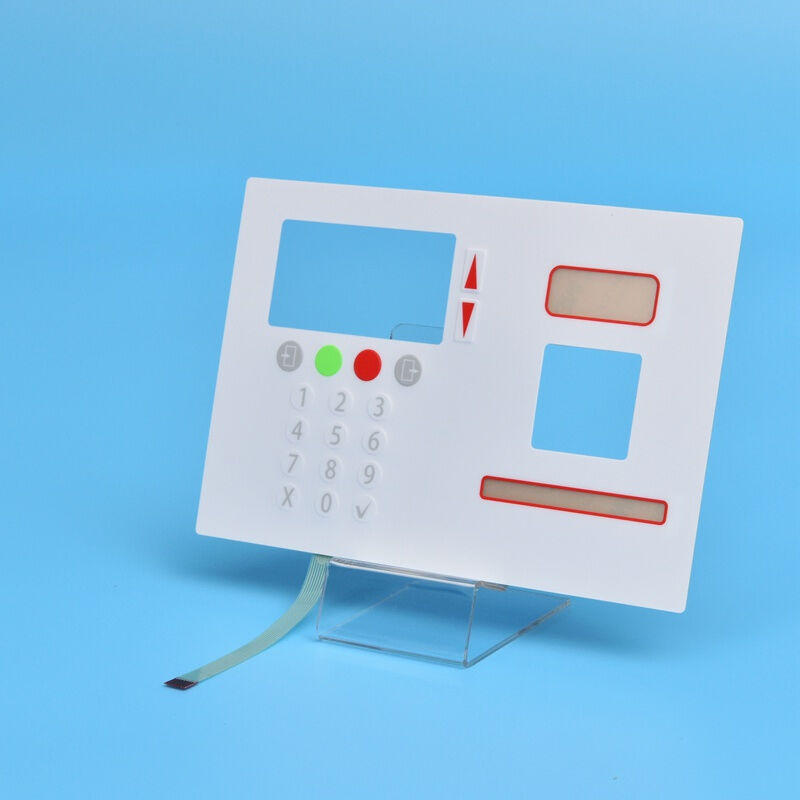

Control Feel Smooth Flexible PCB Board Flexible Printed Circuit
We are a professional manufacturing company with comprehensive production systems, stable technical personnel, and the capability to provide complete one-stop service solutions.
Layer Structure
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (available upon customer request)
Production Capabilities
Our comprehensive manufacturing facility includes:
- Screen Print Department
- IR Tunnel and IR Oven
- Thickness Tester
- Laser Cutting Machine
- Punching Department and Punch Machine
- Emboss Key Section
- Assembly Line
- Electric Testing and OQC Department
- Virtual Aspect Testing
- PU Coating Section
Technical Specifications
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Cycles |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C - ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Competitive Advantages
Design & Aesthetics
- Beautiful appearance with rich, vibrant colors
- Fully customizable designs to reflect product individuality
- Washable panel with durable color protection
- Characters, logos, and panel contents remain intact without damage
Performance & Durability
- Compact size, lightweight, and thin profile
- Excellent tactile feedback and abrasion resistance
- Convenient installation and connection
- Superior tightness: moisture-proof, dust-proof, waterproof, oil-resistant
- Corrosion and erosion resistant against harmful gases, acids, and alkalis
- Earthquake and vibration resistant
Cost Efficiency & Reliability
- Low manufacturing costs with integrated keyboard design
- High lifespan exceeding 100 million cycles
- Easy to operate with intuitive, safe, and reliable performance
- 100% functionally tested in-house
- Guaranteed components without intermittent problems
Additional Technical Parameters
| Insulation Resistance | <100MΩ, 250V DC |
| Contact Resistance | <1Ω/cm |
| Operating Voltage | ≤ 50VDC |
| Working Current | 25-100mA, 0-30V DC |
| Reliability/Service Life | >1 million times / Withstands millions of cycles |
| Operating Humidity | When 40°C, <98%RH |
| Spring Time | ≤ 5ms |
| Substrate Voltage | 2000V DC |
| Tail Flexibility | Any angle within 180 degrees |
| Switch Travel | Flat Type: 0.05-0.3mm / Tactile Type: 0.3-1.5mm |
Custom specifications available with keys in various shapes. Contact us for more detailed information and to discuss your specific requirements.
