Highlight
Multilayer rigid flexible PCB
,Flexible membrane switch circuit board
,Electric circuit board printing
-
LayersOverlay, Overlay Adhesive, Dome Retainer, Metal Dome, Spacer Adhesive, Circuit, Rear Adhesive
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Working Life≤ One Million Times
-
Work Temperature-40 Centigrade-70 Centigrade
-
Work Humidity40 Centigrade-≤ 98%RH
-
Basic Material Pressurization1500V DC
Multilayer Rigid Flexible PCB Printing Electric Circuit Board
Multilayer Rigid Flexible PCB Printing Electric Circuit Board
We are a specialized manufacturer with comprehensive production capabilities and stable technical expertise, offering complete one-stop service solutions for multilayer rigid-flex PCB manufacturing.
Layer Composition
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable)
Production Capabilities
- Screen Print Department
- IR Tunnel
- Thickness Tester
- IR Oven
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assemble
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Parameter | Specification |
|---|---|
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Cycles |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C - ≤ 98% RH |
| Basic Material Pressurization | 1500V DC |

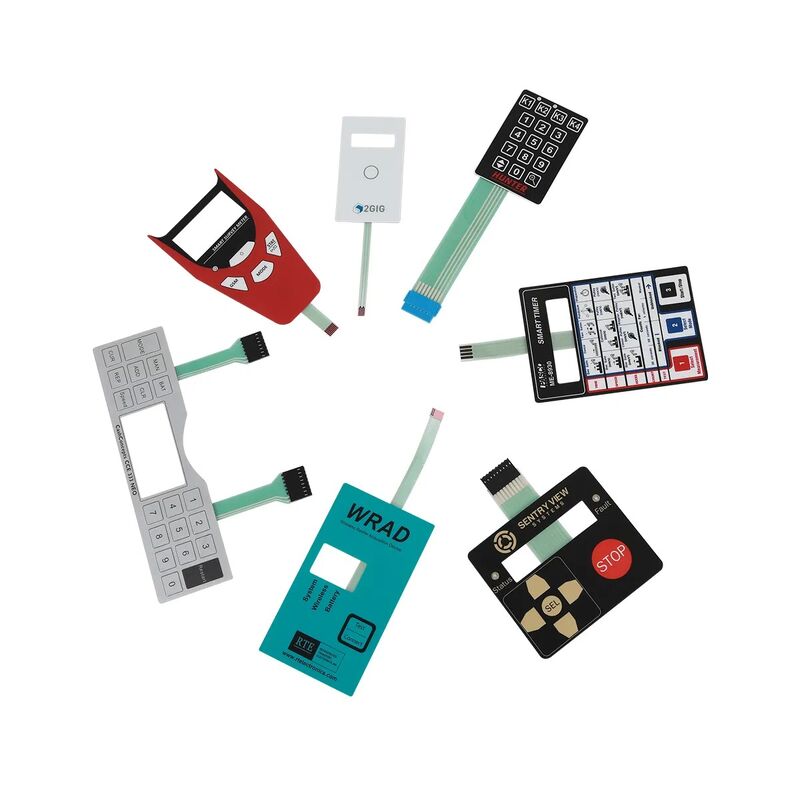

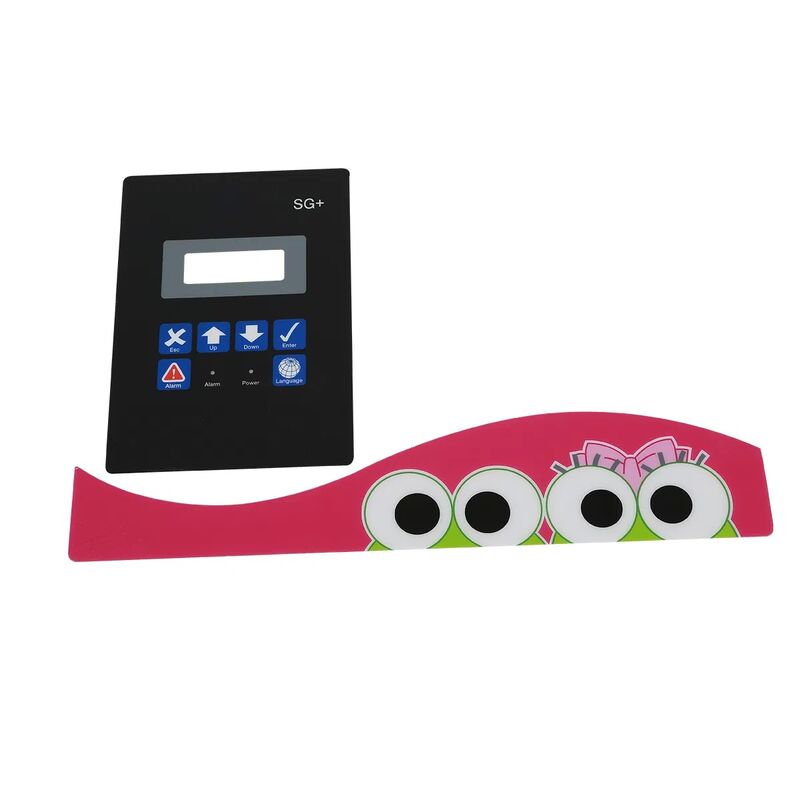

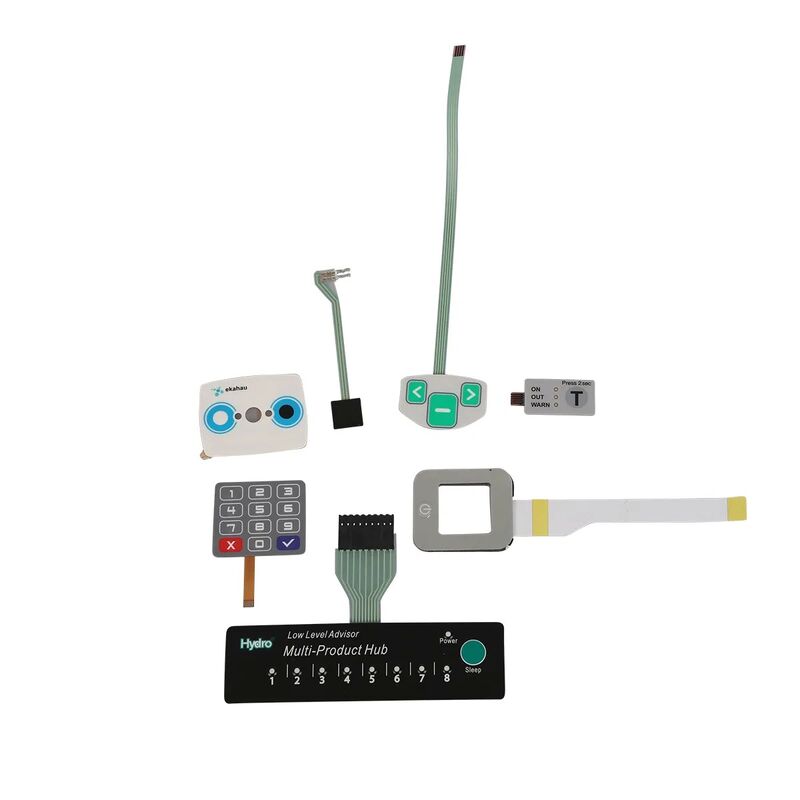

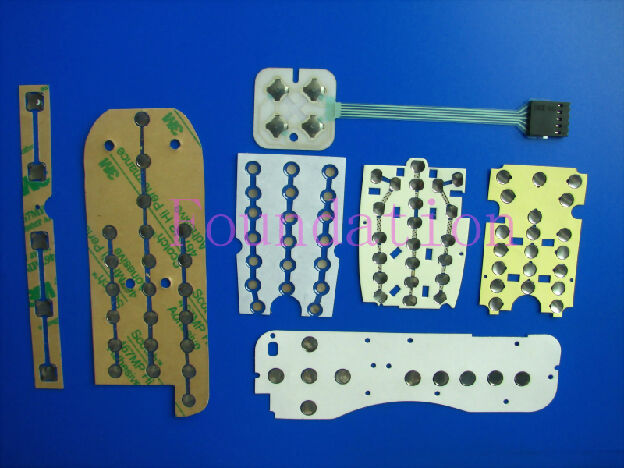

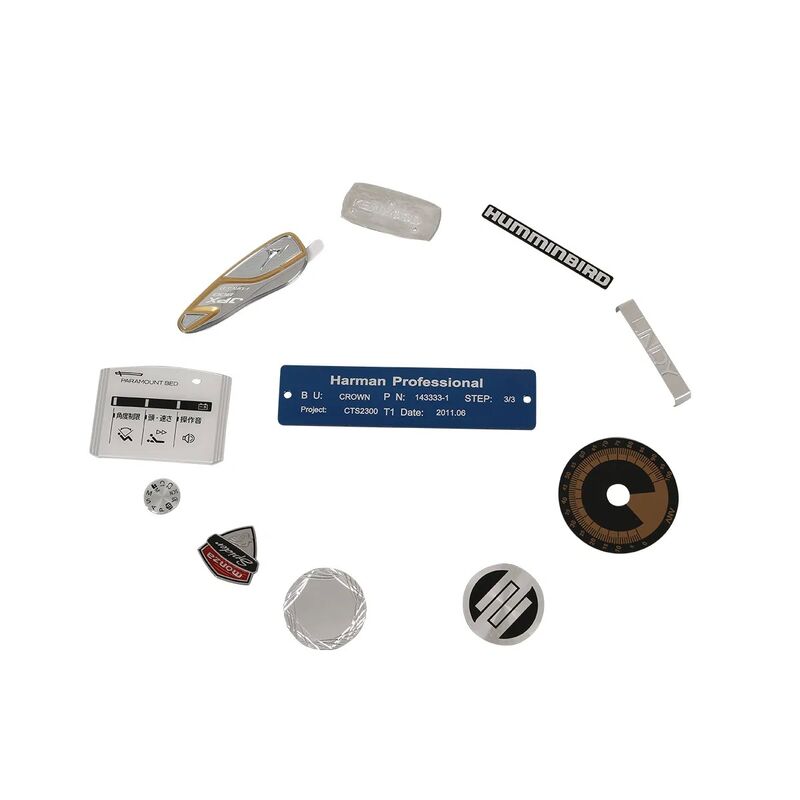

Product Gallery
Contact for More Information
Please contact us for detailed specifications, custom requirements, and pricing information. Let's discuss your specific project needs!
