Highlight
rigid multilayer flexible PCB
,electric printed circuit board
,flexible membrane switch PCB
-
Model NO.HC-FPC-016
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantHB
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsOrganic Resin
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Working Life≤ One Million Times
-
Work Temperature-40°C To 70°C
-
Work Humidity40°C ≤ 98%RH
-
Base Material Pressurization1500V DC
-
Minimum Order Quantity100

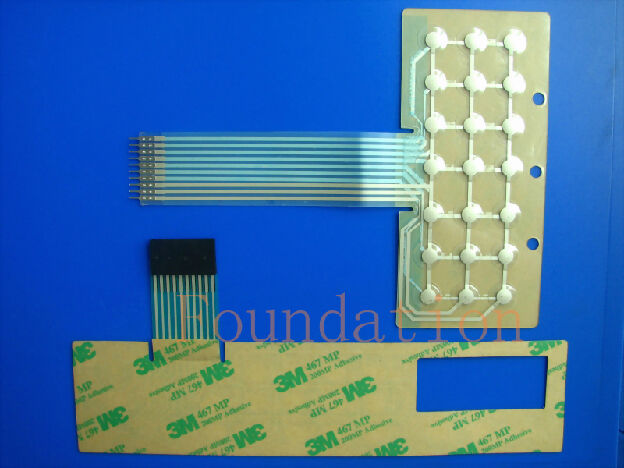

Rigid Multilayer Electric Printed Flexible PCB Circuit Board
Rigid Multilayer Electric Printed Flexible PCB Circuit Board
We specialize in comprehensive membrane switch manufacturing with integrated systems and stable technical teams, providing complete one-stop service solutions.
Product Construction & Materials
Layer Configuration
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable)
Material Specifications
- Base Material: PET/PC
- Overlay Material: Polyester (PET) of AUTOTYPE or Polycarbonate (PC) of LEXAN
- Rear Adhesive: 3M 467MP, 3M 468MP, or as requested
- Color Matching: Pantone and RAL color matching system
- Tail, Pin and Circuit Layout: Customized to customer requirements
- Switch Type: Metal dome or poly dome options
Technical Specifications
Electrical Characteristics
| Wire Resistance | ≤ 1 Ohm/cm |
| Maximum Circuit Rating | 50V DC, 100mA, 500mW |
| Contact Resistance | 0.5-10Ω (varies by trace length and material) |
| Insulation Resistance | ≥ 100MΩ at 100V |
| Dielectric Withstand | 250VRms (50 to 60 Hz/min) |
| Contact Bounce | ≤ 10 ms |
Mechanical Properties
| Actuation Force | Flat type: 57-284G (2-10oz), Tactile type: 170-397g (6-14oz) |
| Switch Stroke | Flat type: 0.1-0.5mm, Tactile type: 0.6-1.5mm |
| Lifetime | > 1 Million cycles |
| Dome Springback Time | < 5 msec |
| Tail Flexibility | Any angle within 180 degrees |
Environmental Specifications
| Operation Temperature | Flat/Metal dome: -20°C to 80°C, Poly dome: -20°C to 55°C |
| Storage Temperature | Flat/Metal dome: -40°C to 80°C, Poly dome: -40°C to 60°C |
| Operation Humidity | 90% at 40°C for 240 hours |
| Vibration Resistance | 20GS max (10 to 200Hz, MIL-STD-202, M204, condition B) |
| Base Material Voltage Withstand | 1500V DC |
Production Capabilities
Screen Print Department
IR Tunnel & Oven
Thickness Testing
Laser Cutting Machines
Punching Department
Emboss Key Section
Assembly Lines
Electrical Testing
OQC Department
Visual Aspect Testing
PU Coating Section
Product Features
- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Perfect exterior finish
- Over 1 million life cycle
- High quality construction
Applications
Medical Equipment
Telecommunications Apparatus
Telephone Systems
Household Appliances
Security Systems
Industrial Controls
Commercial Terms
| Minimum Order Quantity | 50 pieces |
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Production Lead Time | 15-22 days after sample approval |
Company Information
| Place of Origin | Dong Guan, China |
| Brand Name | Foundation |
| Model Number | HC-MS-002 |
| Certification | ISO9001:2008, SGS, Rohs |
Company Advantages
- Experienced management team with extensive field expertise
- Professional staff and skilled workers
- Strong R&D capabilities
- Quick delivery times
- Competitive pricing
- Two factories available for large orders
- Expert sales team and excellent customer service

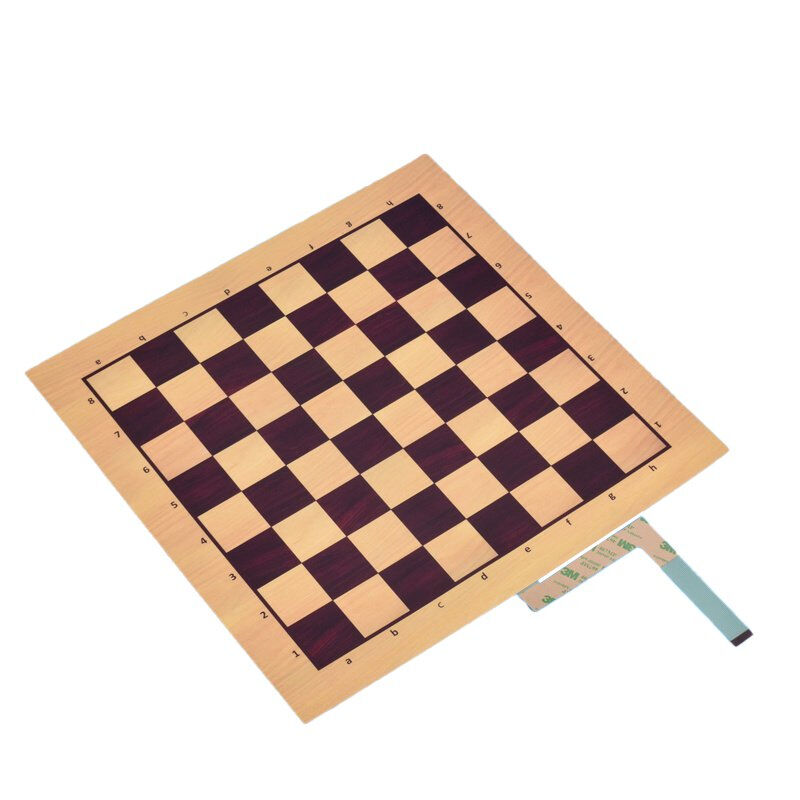

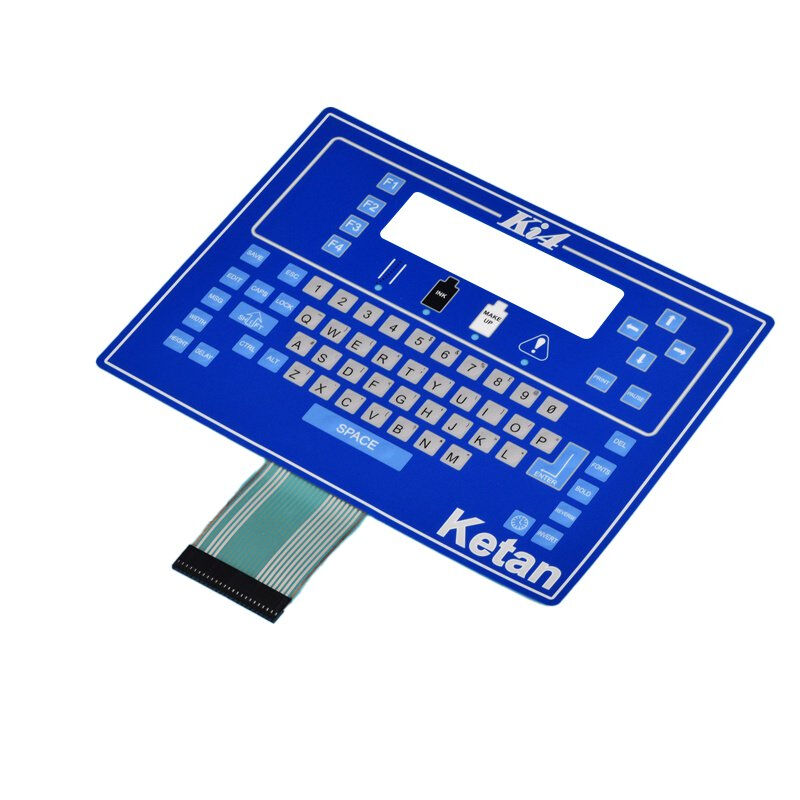

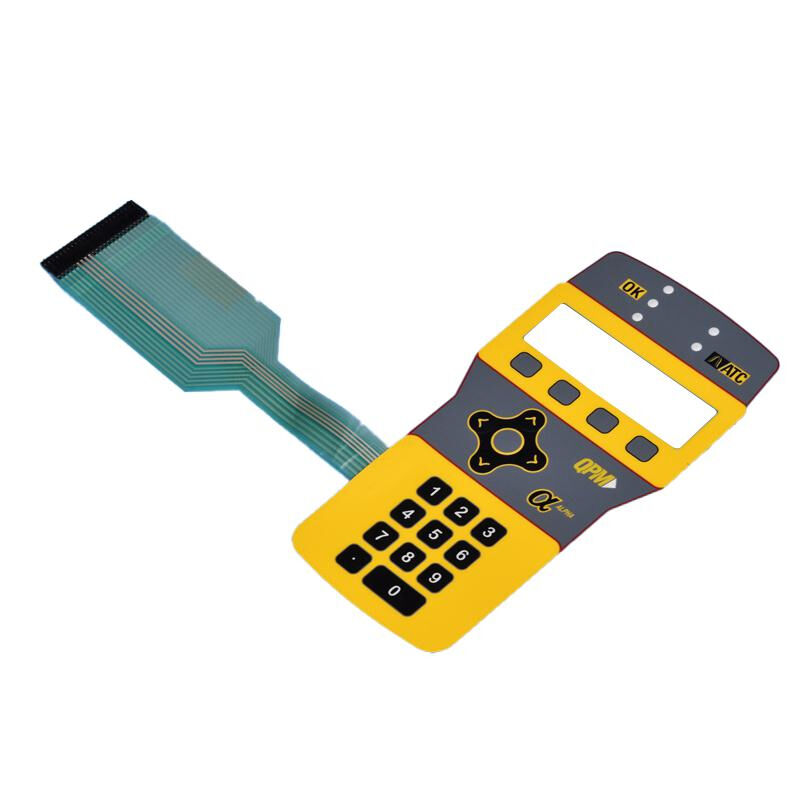

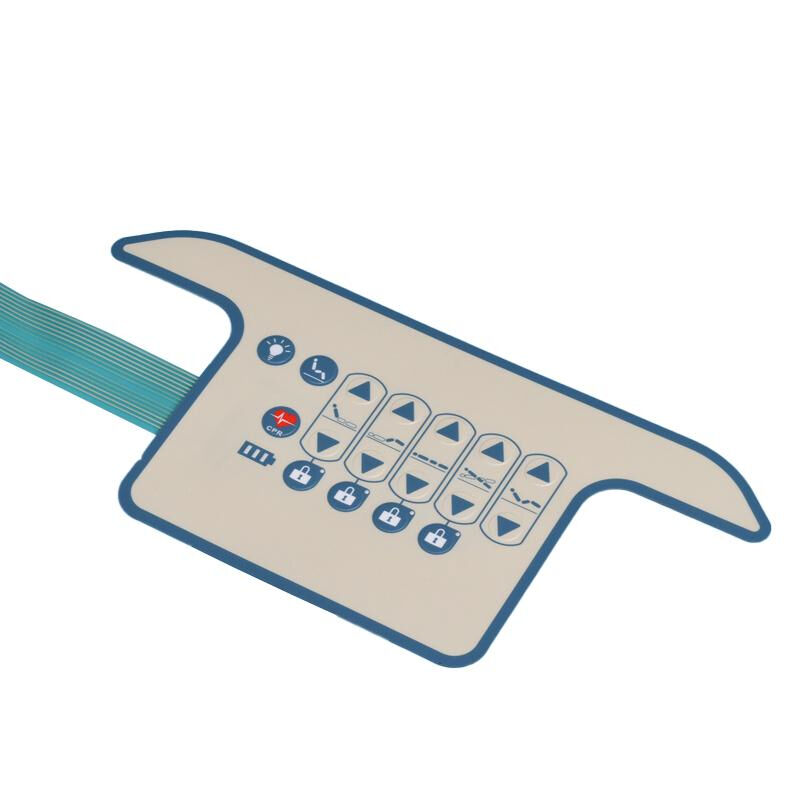

Product Images
