flexible PCB electric board
,flexible membrane switch circuit
,printed circuit board flexible
-
Wire Resistance≤ 1 Ohm/cm
-
Current Rating25-100mA, 0-30V DC
-
Work Voltage≤ 50V DC
-
Insulation Voltage≤ 100M Ohm 250V DC
-
Working Life≤ One Million Times
-
Work Temperature-40°C To 70°C
-
Work Humidity40°C To ≤ 98%RH
-
Base Material Voltage1500V DC
-
Dome Springback Time< 5 Msec
-
Switch TravelFlat Type 0.05-0.3mm, Tactile Type 0.3-1.5mm
-
Tail FlexibilityAny Angle Within 180 Degrees
-
MaterialPET/PC
-
Adhesive Type3M467 & 3M468 Or As Per Request
-
Life Cycle>1 Million Times
-
Insulation Resistance<100MΩ, 250V DC

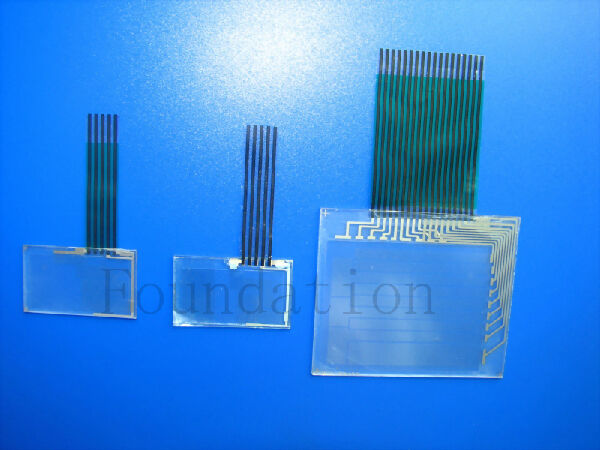

Electric Board Flexible PCB Printing Circuit Board
Electric Board Flexible PCB Printing Circuit Board
We specialize in comprehensive production processing with system integrity and stable technical personnel. Our company provides complete one-stop service solutions for flexible PCB manufacturing.
Product Structure & Layers
- Overlay
- Overlay adhesive
- Dome retainer
- Metal dome
- Spacer adhesive
- Circuit
- Rear adhesive (customizable per request)
Production Capabilities
Our comprehensive manufacturing facility includes:
- Screen Print Department
- IR Tunnel & IR Oven
- Thickness Tester
- Laser Cutting Machine
- Punching Department
- Emboss Key Section
- Assembly Line
- Electric Testing
- OQC Department
- Virtual Aspect Testing
- Punch Machine Department
- PU Coating Section
Technical Specifications
| Parameter | Specification |
|---|---|
| Wire Resistance | ≤ 1 Ohm/cm |
| Current Rating | 25-100mA, 0-30V DC |
| Work Voltage | ≤ 50V DC |
| Insulation Voltage | ≤ 100M Ohm 250V DC |
| Working Life | ≤ One Million Times |
| Work Temperature | -40°C to 70°C |
| Work Humidity | 40°C ≤ 98%RH |
| Basic Material Pressurization | 1500V DC |
Membrane Switch Features

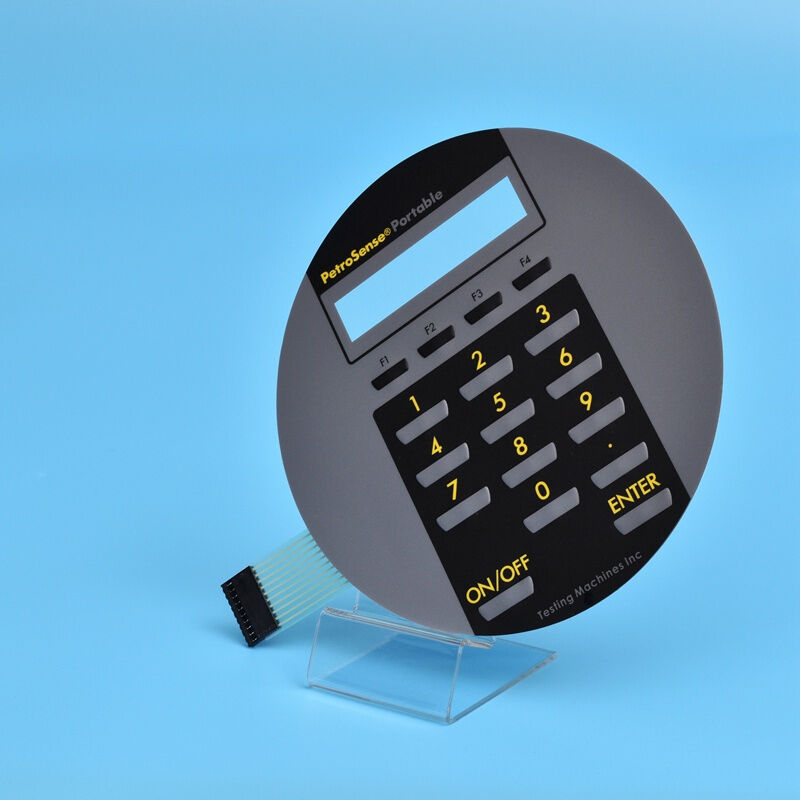

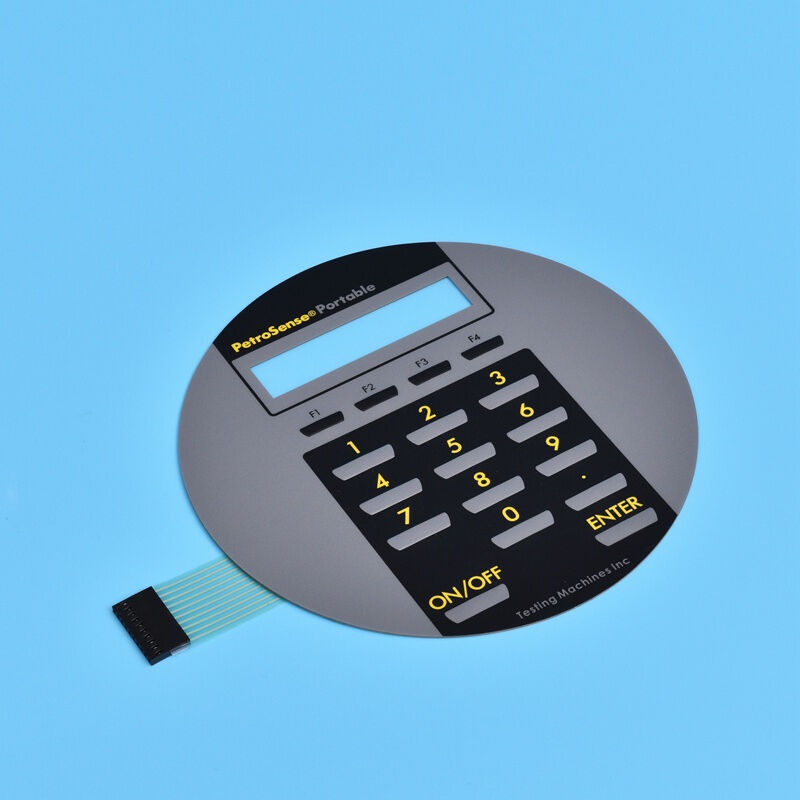

- Membrane Switch with windows
- Touch feeling keys with embossing
- Silk Screen Printing
- Perfect exterior finish
- Over 1 million life cycle
Product Details
| Place of Origin | Dong Guan, China |
| Brand Name | Foundation |
| Model Number | HC-MS-002 |
| Certification | ISO9001:2008, SGS, Rohs |
Materials
- Material: PET / PC
- Adhesive: 3M467 & 3M468 or as per request
- High lifetime: >1 million times
- Certifications: ISO9001:2008, RoHS, SGS
- High quality construction
Commercial Terms
| MOQ | 50pcs |
| Payment Terms | T/T or L/C |
| Mold Charge | 100% in Advance |
| Sample Time | 9-10 days after drawing approval |
| Lead Time for Production | 15-22 days after sample approval |
Applications
Our membrane switches are widely used in:
- Medical Equipment
- Telecommunications apparatus
- Telephone systems
- Household appliances
- Security systems
- Industrial controls
Detailed Specifications
| Wire Lead Resistance | < 1Ω/CM | Life Time | > 1 Million times |
| Rated Current | 25-100mA, 0~30V DC | Operation Temperature | -40ºC ~ 70ºC |
| Rated Voltage | < 50V, DC | Operation Humidity | at 40ºC, < 98%RH |
| Insulation Resistance | < 100MΩ, 250V DC | Dome Springback Time | < 5 msec |
| Switch Travel (Flat Type) | 0.05-0.3mm | Base Material Voltage Withstand | 1500 V DC |
| Switch Travel (Tactile Type) | 0.3-1.5mm | Tail Flexibility | Any angle within 180 degree |
