Highlight
Flexible membrane switch control keypad
,FPC circuit board switch panel
,Flexible printing switch keypad
-
Model NO.HC-FPC-022
-
Combination ModeAdhesive Flexible Plate
-
Conductive AdhesiveConductive Silver Paste
-
Flame RetardantV2
-
Processing TechnologyElectrolytic Foil
-
Base MaterialCopper
-
Insulation MaterialsOrganic Resin
-
Maximum Voltage50 V DC
-
Maximum Current100mA
-
Contact Resistance0.5-10Ω
-
Insulation Resistance≥100MΩ
-
Dielectric Withstand250VRms
-
Actuation Force57 To 397 G
-
Switch Stroke0.1 To 1.5mm
-
Operation Temperature-20 To 80°C
-
Minimum Order Quantity100

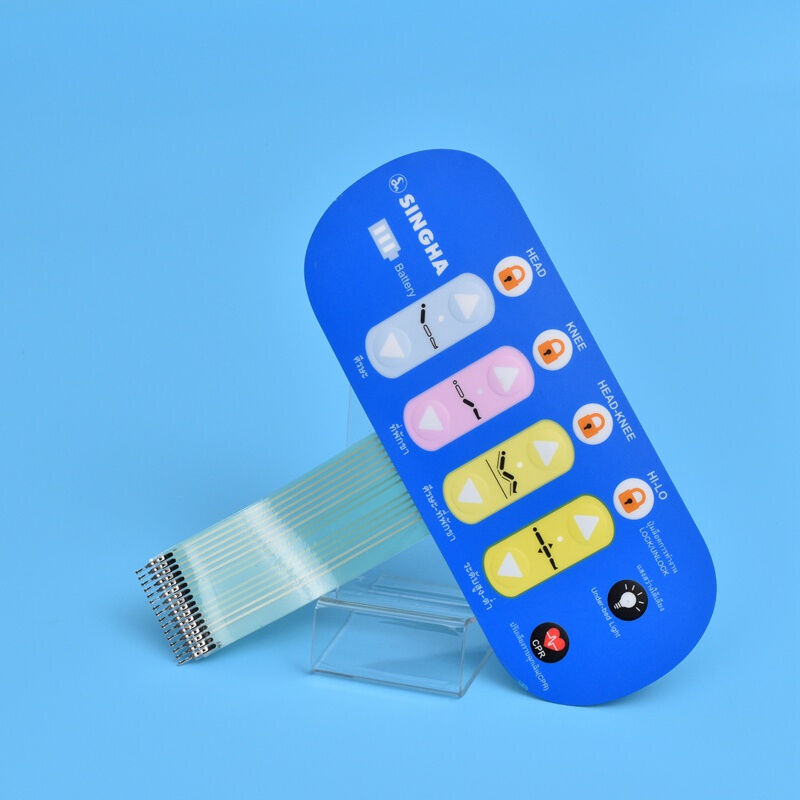

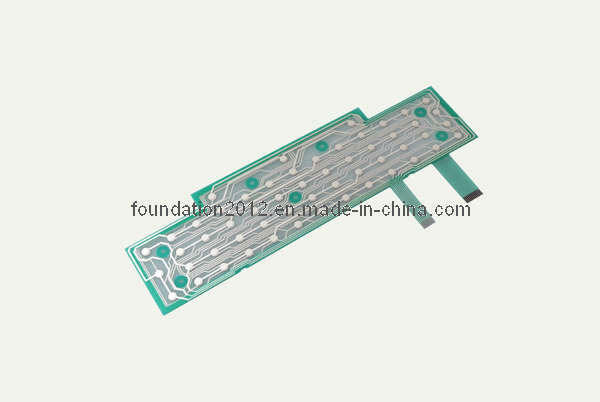

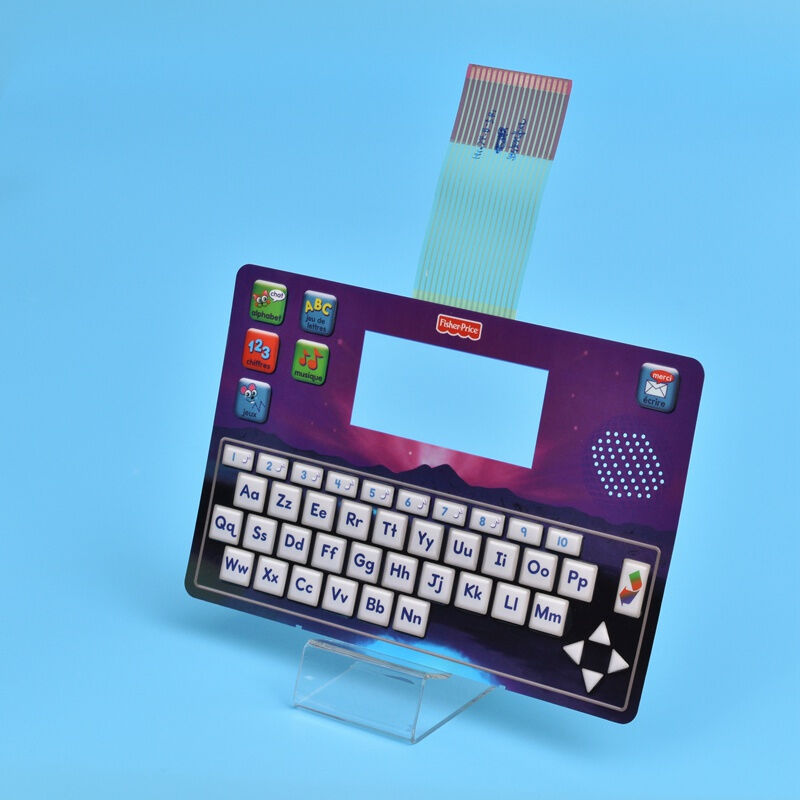

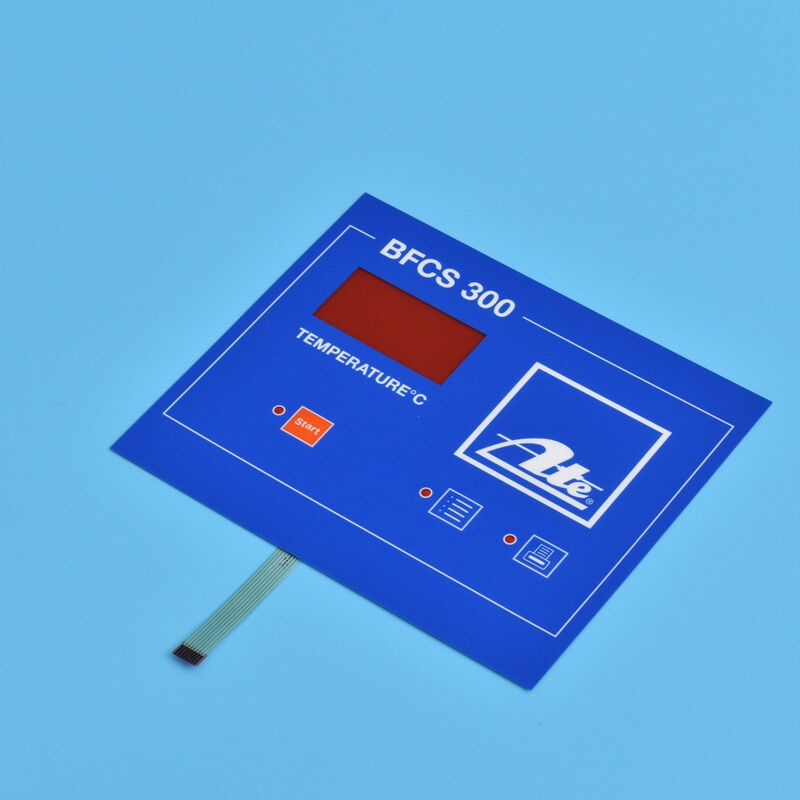

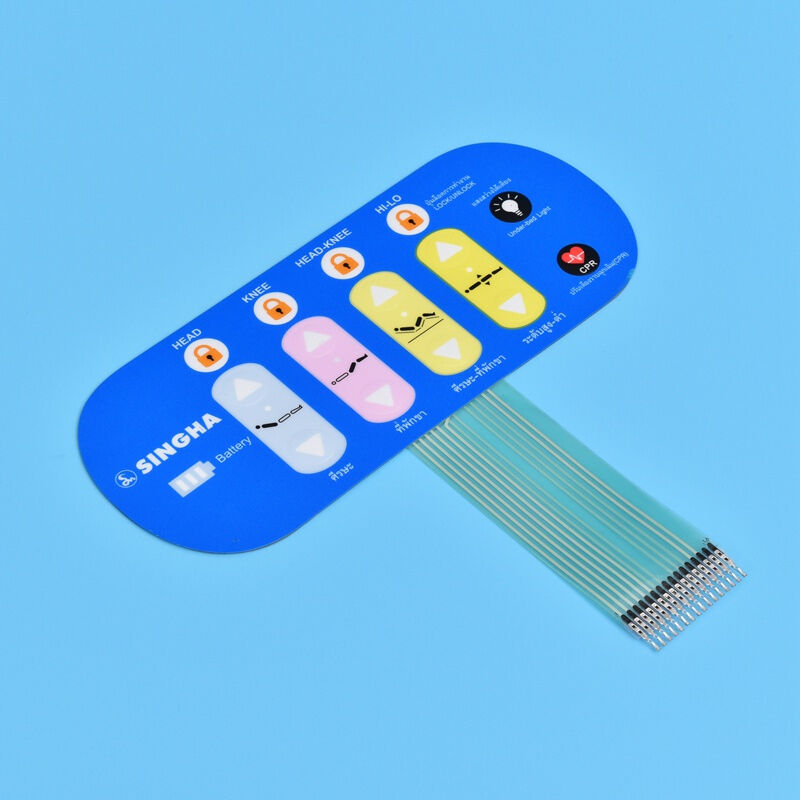

Flexible Printing Swith Panel FPC Control Keypad Circuit Board
Flexible Printing Switch Panel FPC Control Keypad Circuit Board
High-performance flexible printed circuit control keypad designed for reliable operation in industrial applications.
Key Features
- Overlay material: Polyester (PET) of AUTOTYPE or Polycarbonate (PC) of LEXAN
- Rear adhesive: 3M 467MP, 3M 468MP, and equivalent options
- Matching color: Pantone and RAL color matching system
- Custom tail, pin and circuit layout according to customer requirements
- Available with metal dome or poly dome configurations
Electrical Specifications
- Maximum circuit rating: 50 V DC, 100mA, 500mW
- Contact resistance: 0.5-10Ω (varies based on trace length and material)
- Insulation resistance: ≥100MΩ at 100V
- Dielectric withstand: 250VRms (50 to 60 Hz/min)
- Contract bounce: ≤10 ms
Mechanical Specifications
- Actuation force: Flat type = 57 to 284G (2 to 10oz), Tactile type = 170 to 397g (6 to 14oz)
- Switch stroke: Flat type = 0.1 to 0.5mm, Tactile type = 0.6 to 1.5mm
Environmental Specifications
- Operation temperature: Flat/metal dome: -20°C to 80°C, Poly dome: -20°C to 55°C
- Storage temperature: Flat/metal dome: -40°C to 80°C, Poly dome: -40°C to 60°C
- Operation humidity: 90% at 40°C for 240 hours
- Vibration: 20GS max (10 to 200Hz, MIL-STD-202, M204, condition B)
Technical Specifications
| Wire lead resistance | <1Ω/CM | Life time | >1 Million times |
| Rated current | 25-100mA, 0~30V DC | Operation Temperature | -104°F~158°F |
| Rated Voltage | <50V, DC | Operation Humidity | at 104°F, <98% RH |
| Insulation resistance | <100MΩ, 250V DC | Dome springback time | <5 msec |
| Switch travel | Flat Type 0.05-0.3mm Tactile type: 0.3-1.5mm |
Base Material voltage withstand | 1500 V DC |
| Tail flexibility | Any angle within 180 degrees | ||
