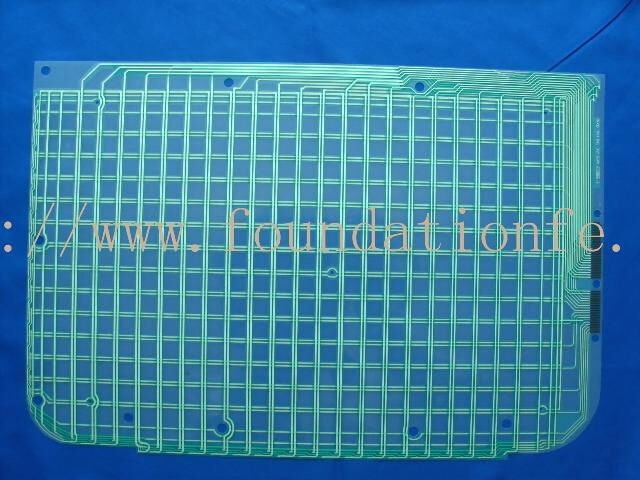

Flexible Rigid Flexible PCB Printing Circuit Electric Board

Highlight

flexible PCB electric board
,
rigid flexible printed circuit
,
membrane switch PCB
Model NO.

HC-FPC-001
Combination Mode

Adhesive Flexible Plate
Conductive Adhesive

Conductive Silver Paste
Flame Retardant

HB
Processing Technology

Electrolytic Foil
Base Material

Aluminum
Insulation Materials

Organic Resin
Size

289.00mm * 216.00mm
Key Count

136 Keys
Connector Type

65pin (Zif)
LED Count

12PCS
Wire Resistance

≤ 1 Ohm/cm
Current Rating

25-100mA, 0-30V DC
Work Voltage

≤ 50V DC
Insulation Voltage

≤ 100M Ohm 250V DC
Minimum Order Quantity

100

Flexible Rigid Flexible PCB Printing Circuit Electric Board

Name: Flexible Rigid Flexible PCB Printing Circuit Electric Board
Brand: TKM MEMBRANE TECHNOLOGY LTD.
Availability: InStock

button button

Get Price Contact Now

Flexible Rigid Flexible PCB Printing Circuit Electric Board

We specialize in comprehensive production processing with system integrity and stable technical personnel. Our one-stop service ensures complete solutions for all your PCB requirements.

Layer Construction

Overlay
Overlay adhesive
Dome retainer
Metal dome
Spacer adhesive
Circuit
Rear adhesive (customizable)

Production Capabilities

Our advanced manufacturing facilities include: Screen Print Department, IR Tunnel, Thickness Tester, IR Oven, Laser Cutting Machine, Punching Department, Emboss Key Section, Assembly, Electric Testing, OQC Department, Virtual Aspect Testing, Punch Machine Department, and PU Coating Section.

Technical Specifications

Wire Resistance	≤ 1 Ohm/cm
Current Rating	25-100mA, 0-30V DC
Work Voltage	≤ 50V DC
Insulation Voltage	≤ 100M Ohm 250V DC
Working Life	≤ One Million Times
Work Temperature	-40°C to 70°C
Work Humidity	40°C ≤ 98%RH
Basic Material Pressurization	1500V DC
